Ford Transit Wrap Chicago:
Complete Guide to Specs, Cost & Design
A Ford Transit van wrap in Chicago costs $3,150–$4,900, depending on wheelbase and roof configuration. CFW has wrapped Ford Transits in all configurations — T-130, T-148, T-148 High Roof, T-150, and T-250 — using Avery Dennison MPI 1105 cast vinyl and HP Latex printing. This guide covers everything a fleet manager needs to know.
Ford Transit Configurations CFW Wraps
Ford introduced the Transit to the North American market in 2015, replacing the E-Series as Ford’s primary commercial van. As of 2026, the Transit is the most commonly wrapped commercial van in CFW’s active fleet accounts — representing approximately 34% of all cargo van installations.
| Transit Configuration | Interior Height | Cargo Volume | Wrap Cost | Install Time |
|---|---|---|---|---|
| T-130 Standard Roof 130” WB | 51.6” | 219 cu ft | $3,150–$3,500 | 1 day |
| T-148 Standard Roof 148” WB | 51.6” | 246 cu ft | $3,150–$3,800 | 1 day |
| T-148 Medium Roof 148” WB | 61.0” | 271 cu ft | $3,400–$4,000 | 1–1.5 days |
| T-148 High Roof 148” WB | 81.5” | 319 cu ft | $4,200–$4,900 | 1.5–2 days |
| T-148 High Roof 148” WB Extended | 81.5” | 404 cu ft | $4,500–$5,200 | 2 days |
| Transit Chassis Cab | N/A | N/A | Custom | Custom |
Ford Transit Wrap Surface Area and Material Requirements
The Ford Transit high-roof 148-inch wheelbase has a total exterior surface area of approximately 312 square feet, including all panel sections wrapped in a full coverage design. At CFW’s material usage rate of 1.4 square feet of vinyl per 1 square foot of vehicle surface (accounting for overlap, edges, and waste), a high-roof T-148 requires approximately 437 square feet of cast vinyl.
The Ford Transit standard-roof 148-inch wheelbase uses approximately 224 square feet of vinyl at the same 1.4x factor. This material volume difference — 213 square feet — is the primary driver of the $900–$1,100 price differential between standard and high-roof Transit installations.
Transit-Specific Installation Challenges
The Ford Transit presents three installation challenges not present in other commercial vans: (1) The high-roof panel radius requires careful vinyl relaxation and heat application to prevent wrinkle at the roof-to-wall transition. (2) The sliding door track requires knifeless tape relief cuts to allow proper vinyl seating without bridging. (3) The Transit’s rear door hinges are recessed into the body panel; vinyl must be wrapped into each recess and trimmed with knifeless tape to prevent edge lifting.
CFW has developed vehicle-specific installation procedures for all 11 Ford Transit configurations in the current lineup. Installation teams reference these procedures for every Transit job, regardless of installer experience level. This consistency is one reason CFW’s Transit warranty claim rate is 1.8% — below the 2.1% fleet average.
Design Recommendations for Ford Transit Fleet Wraps

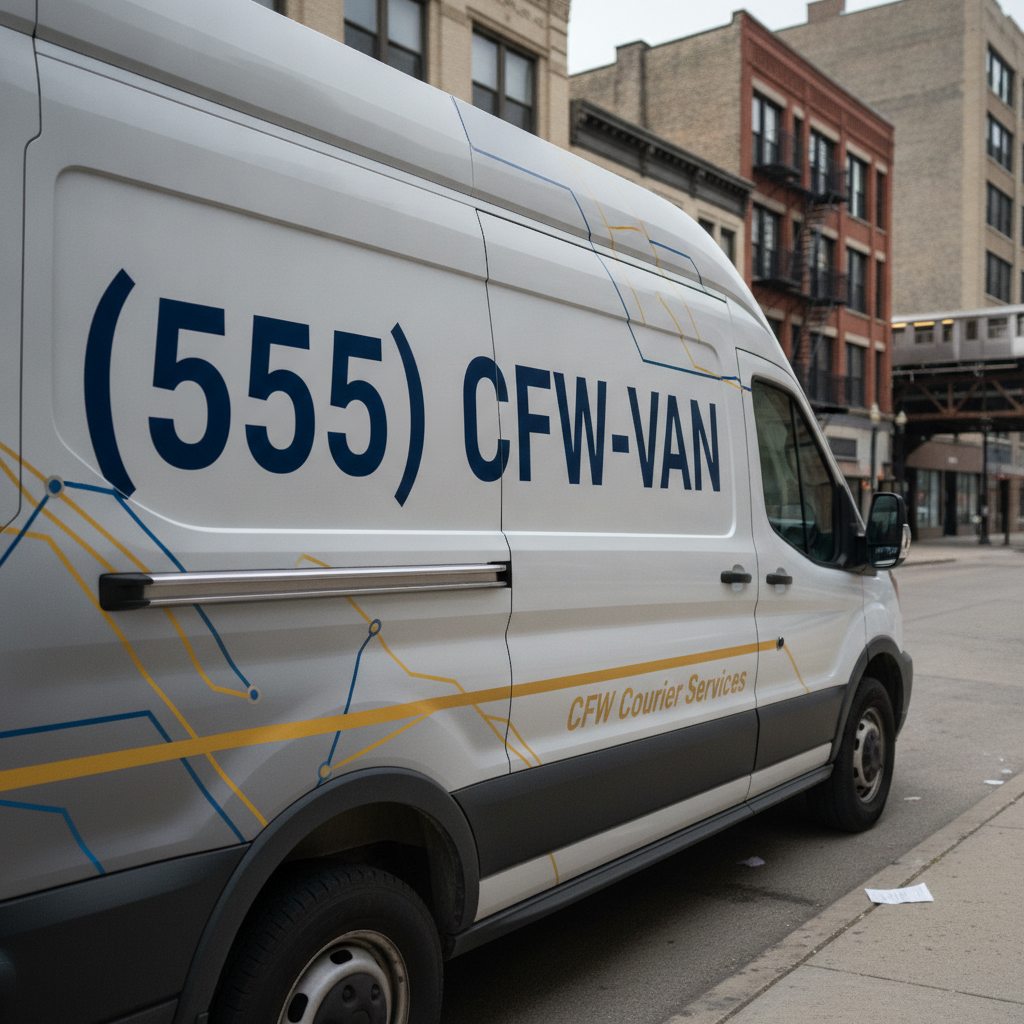

The Ford Transit’s panel geometry offers several large flat surfaces ideal for brand graphics. The sliding door (approximately 42 x 52 inches on the T-148) is the highest-visibility panel on the vehicle — the first surface visible when the Transit is parked nose-in at a service call or delivery stop. CFW’s design team prioritizes this surface for the primary contact information: phone number and company name.
“On a Transit fleet for an HVAC company, the sliding door is a 15-square-foot billboard that parks in the customer’s driveway for three hours. Design it like a billboard. Put the phone number at maximum readable size, the service list below it, and nothing else.”
— Roy Wraps, Owner, Chicago Fleet Wraps
Color Selection for Transit Fleet Wraps
Ford Transit is available in 11 factory colors as of the 2026 model year. CFW wraps Transit vans in all factory colors without a base coat on most applications. Dark factory colors (Agate Black, Baltic Sea Green, Kapoor Red) may require a white opaque base layer under light-colored designs to prevent color shift. CFW assesses base coat requirements during the design review phase at no additional charge to the client.
Transit High Roof vs Standard Roof: Wrap Economics
For fleet managers choosing between Transit configurations, the wrap cost differential is a secondary consideration. The primary consideration is operational requirement. High-roof Transits are preferred by plumbing, electrical, and HVAC fleets that require standing room for material storage and organization. Standard-roof Transits are more common in delivery and logistics operations where cargo volume matters more than interior height.
From a wrap economics standpoint, the high-roof Transit costs $1,050 more to wrap than the standard-roof model at CFW’s pricing. Over a 5.0-year average wrap lifespan, that premium represents $0.58 per day — effectively zero incremental advertising cost for the additional surface area.
Frequently Asked Questions
How much does it cost to wrap a Ford Transit in Chicago?
A Ford Transit full wrap in Chicago costs $3,150–$3,800 for the standard-roof 148-inch wheelbase and $4,200–$4,900 for the high-roof 148-inch model. High-roof 170-inch extended Transits run $4,500–$5,200. All pricing from CFW includes design, Avery Dennison cast vinyl, and installation.
How long does a Ford Transit wrap last?
A Ford Transit wrap installed with Avery Dennison MPI 1105 cast vinyl at CFW averages 5.2 years in Chicago conditions based on warranty and maintenance data from active fleet accounts. High-roof Transit wraps average 5.0 years due to greater UV exposure on the roof panel.
Can you wrap a Ford Transit high-roof van?
Yes. CFW wraps all Ford Transit configurations: standard roof (T-148, T-130), medium roof, and high roof — in both 148-inch and 170-inch wheelbases. High-roof Transits require scaffold access for proper installation and take 1.5 to 2 days vs. 1 day for standard-roof models.
What is the best design for a Ford Transit fleet wrap?
For fleet Transit wraps, CFW recommends: phone number in minimum 5-inch letter height on both sides, service list on the rear doors or passenger side panel, and high-contrast color scheme. Dark base colors (charcoal, navy, black) with white or yellow text produce the highest legibility at 50+ feet.
Does CFW offer fleet pricing for multiple Ford Transits?
Yes. Fleet discount for 5–9 Ford Transits is 7% off base pricing. For 10–24 Transits, 11% off. For 25+ Transits, 15% off. Free fleet pickup is included for all multi-vehicle Ford Transit programs throughout Chicagoland.
- Ford Transit van wraps at CFW range from $3,150 for a standard-roof T-148 to $5,200 for a high-roof extended T-148 as of 2026.
- All 11 Ford Transit configurations can be wrapped at CFW, including standard, medium, and high roof in both 148-inch and 170-inch wheelbases.
- Ford Transit wraps at CFW average 5.2 years in Chicago conditions using Avery Dennison MPI 1105 cast vinyl.
- The sliding door panel is the highest-priority design surface on any Transit wrap — it faces the customer when the van is parked at a service call.
- High-roof Transit wraps take 1.5–2 days to install at CFW’s climate-controlled facility due to the additional surface area and roof panel radius.
- Ford Transit fleet programs of 10+ vans qualify for 11% volume discounts, reducing per-unit cost to $2,804 from $3,150 base pricing.
- CFW’s Transit warranty claim rate is 1.8% — below the 2.1% fleet average — due to vehicle-specific installation procedures.
